Prime Stone

Prime Stone

A new design featuring natural impressions and metropolitan references.

Stone’s natural spirit blends with the modern character of cement surfaces.


- Made in Italy -

Product range

Colours Decors Trim Pieces

Floors and Walls porcelain tiles

Floors and Walls laminated porcelain stoneware

Outdoor floors 20mm porcelain tiles

Be inspired

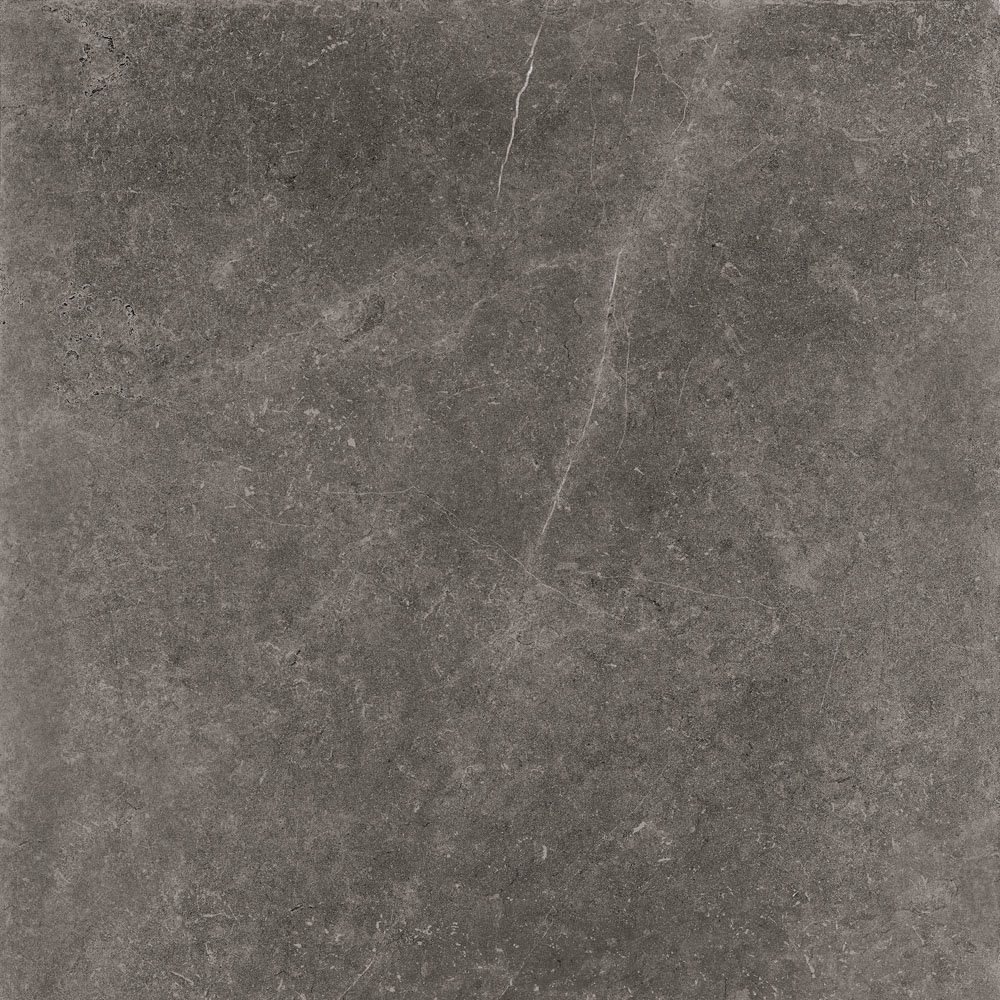

Black Prime 90x90
Silver Prime Square 20x60
Black Prime 20x60
Black Prime 20x60 Rect. - Silver Prime Square 20x60 Rect. - Black Prime Soft 90x90 Rect.

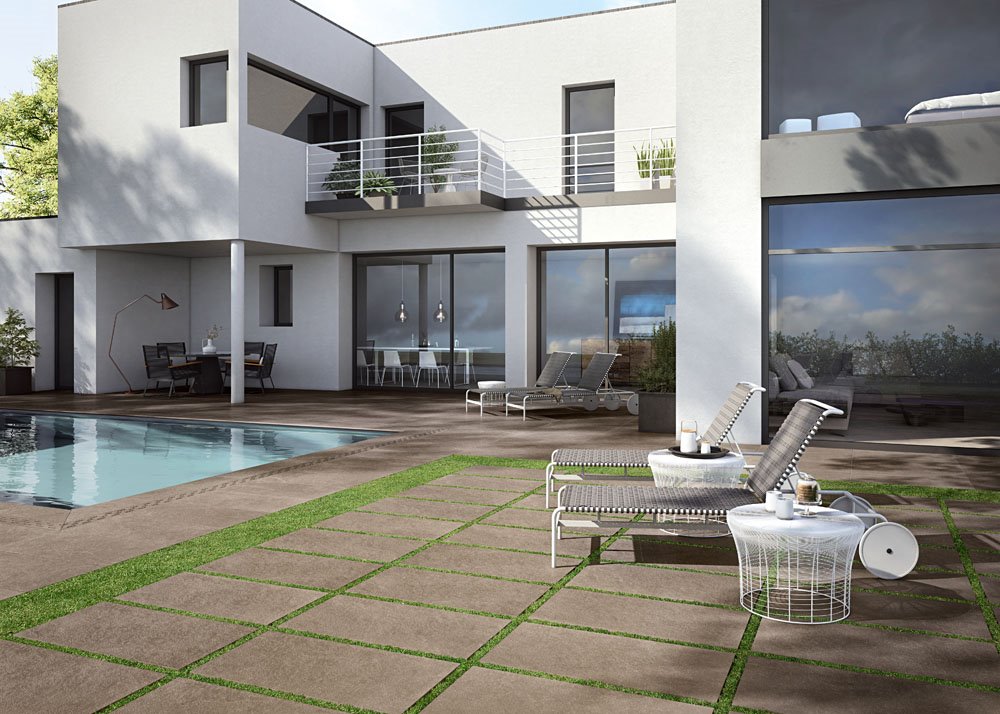

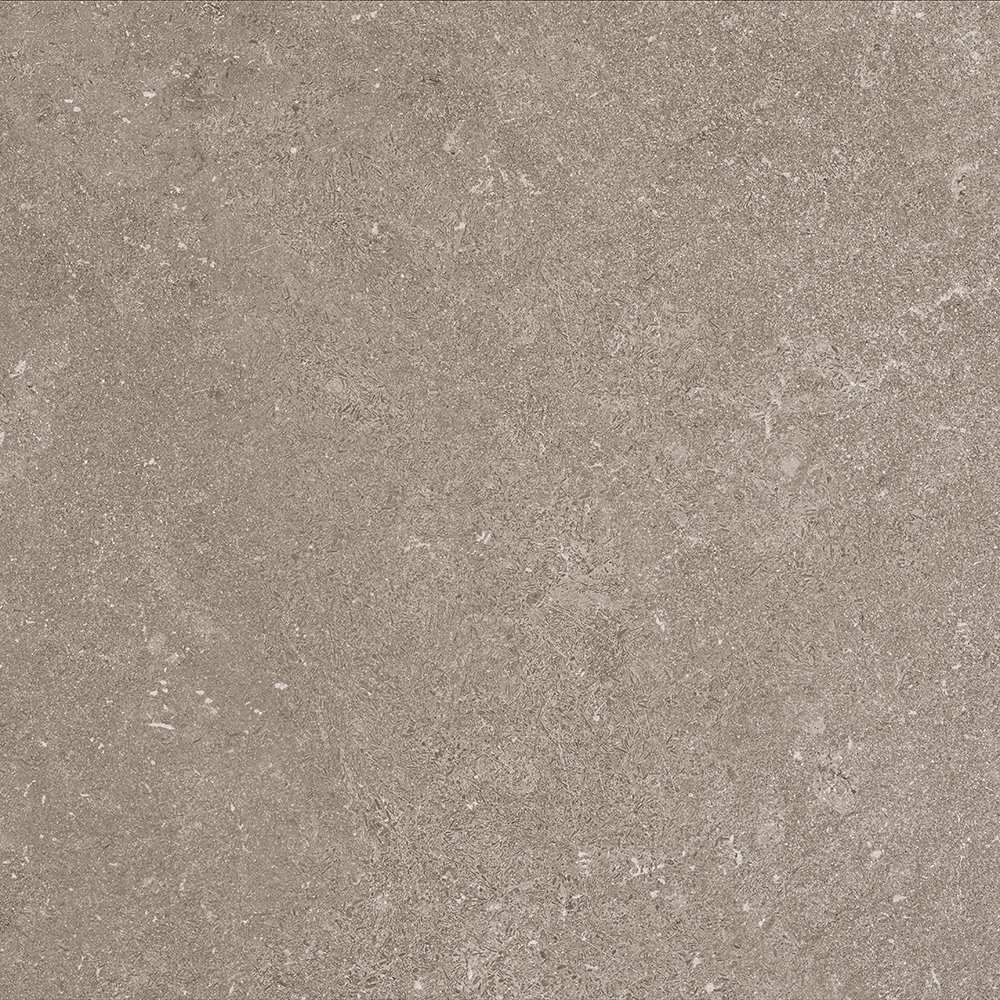

Greige Prime 45x90 Rect. Strutturato 20mm

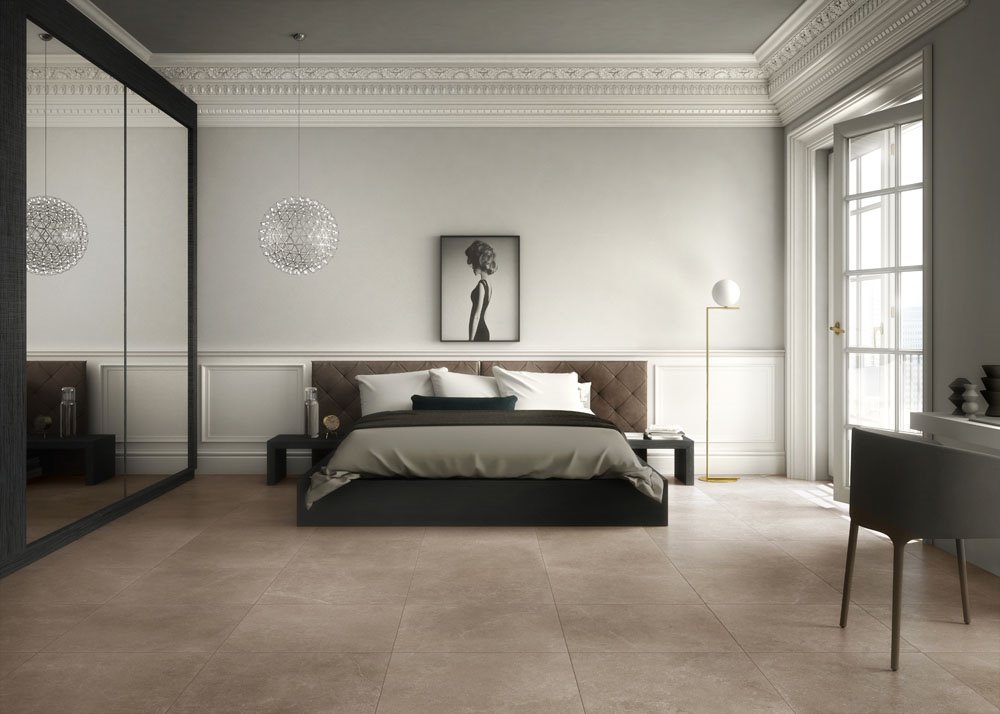

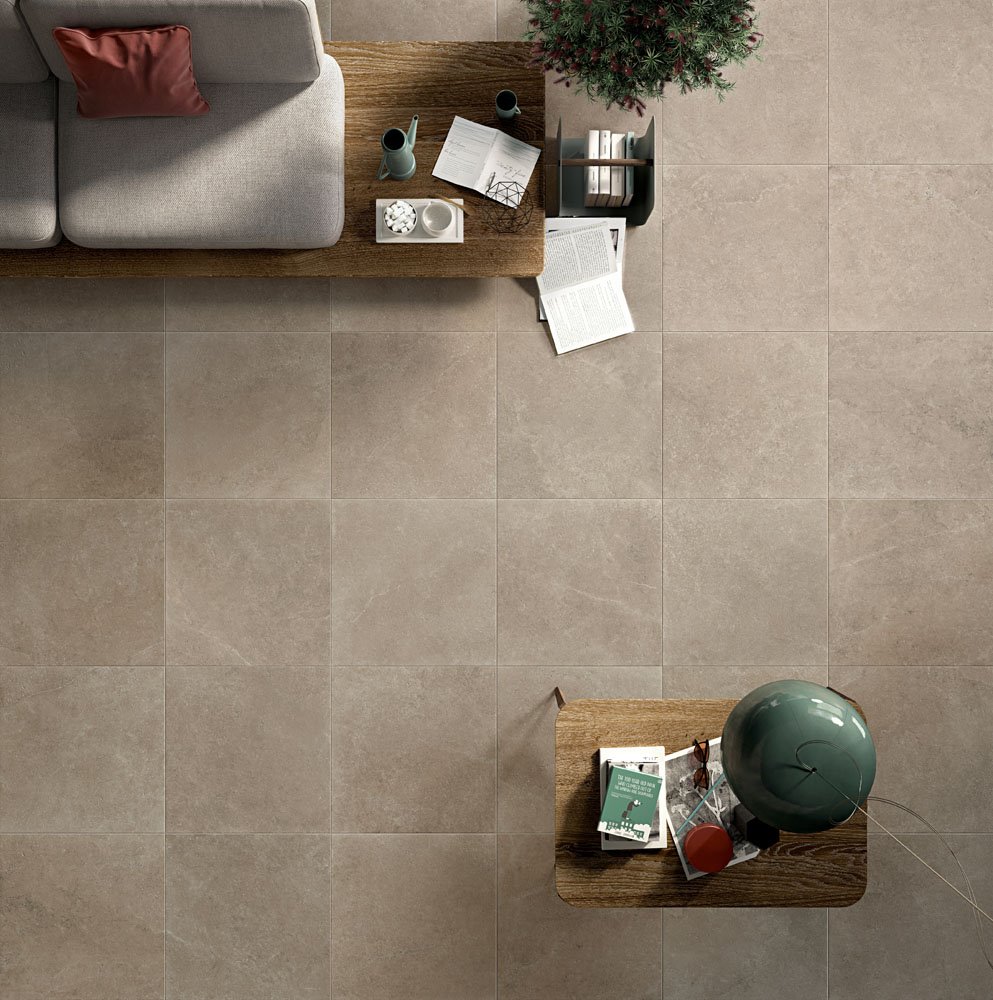

Greige Prime Soft 60x60 Rect.
Greige Prime Soft 60x60 Rect.

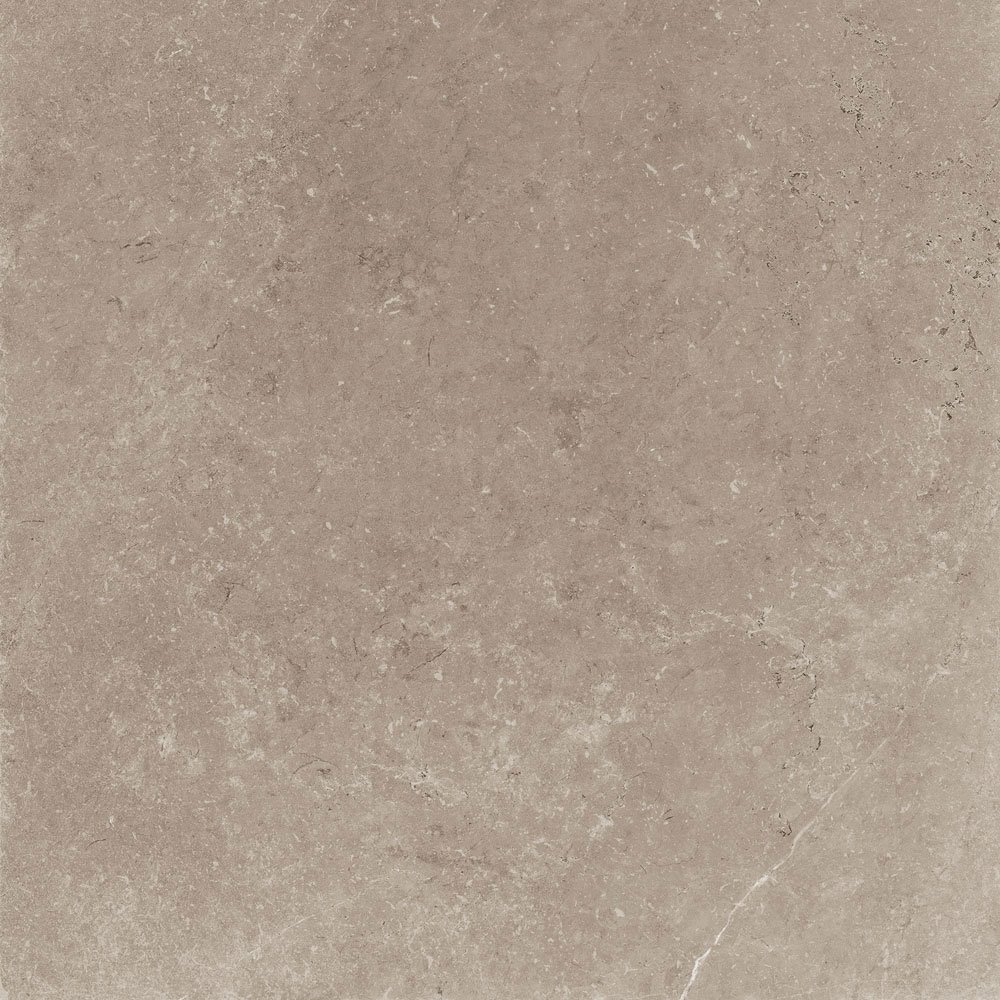

Greige Prime 60x60

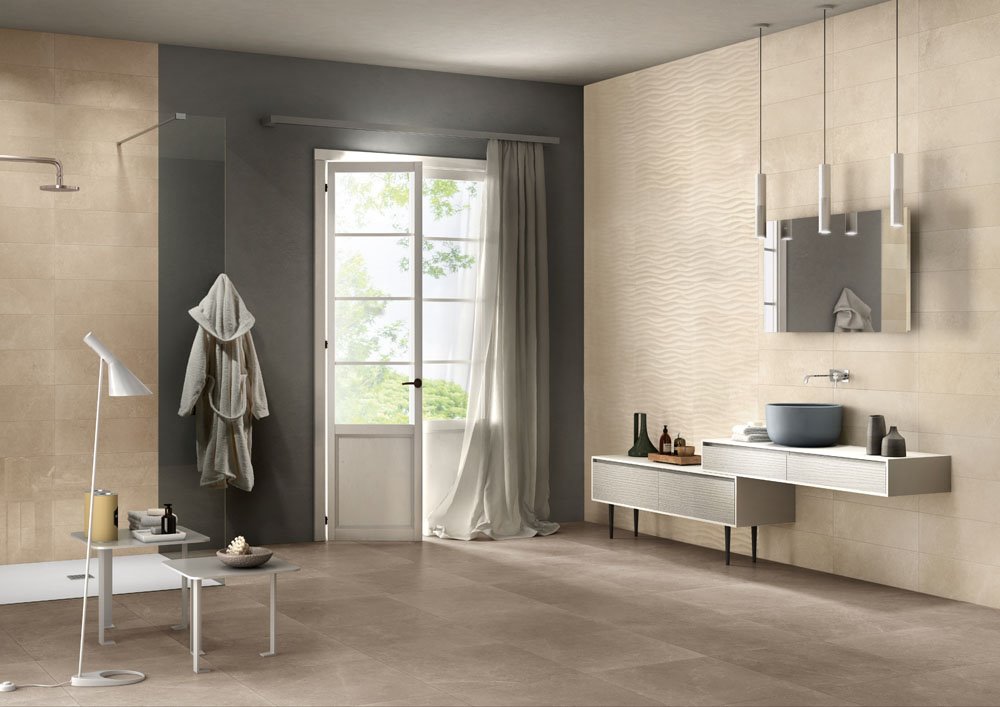

Sand Prime 20x60 / Stream 20x60 Rect. - Greige Prime Soft 60x60 Rect.

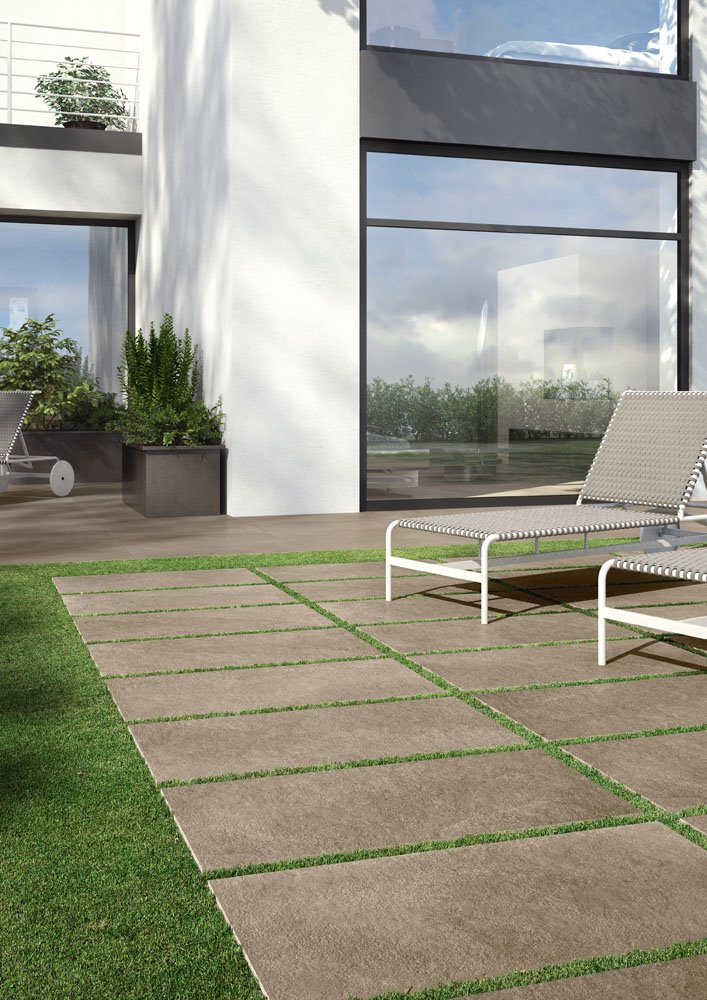

Greige Prime 45x90 Rect. Strutturato 20mm

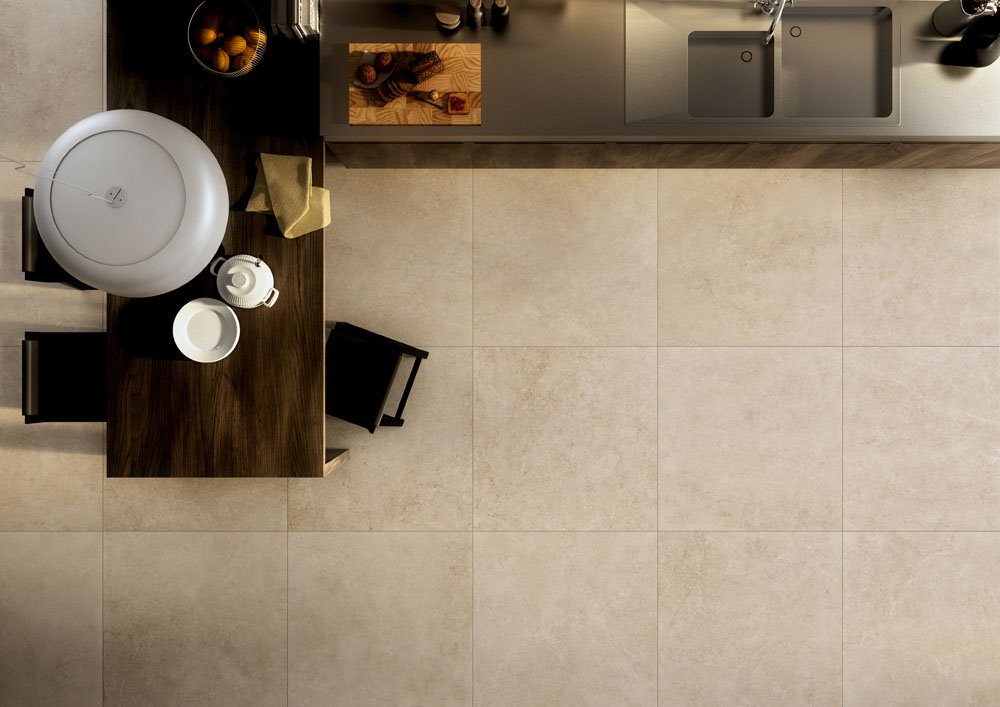

Sand Prime Soft 90x90
Sand Prime 90x90

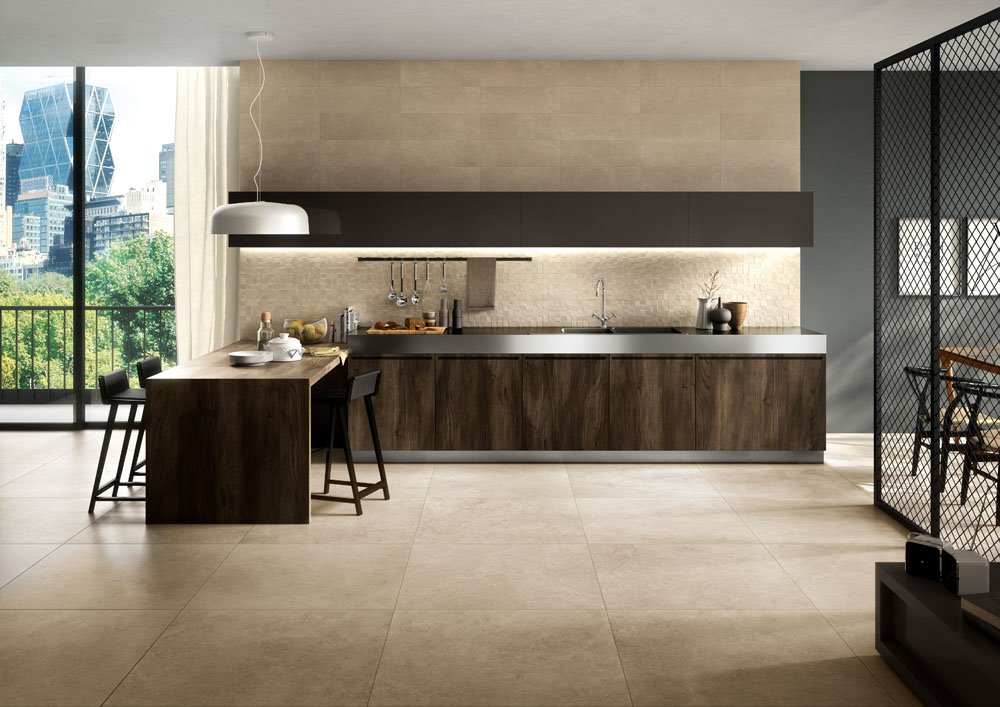

Sand Prime Soft 90x90 / 20x60 cm - Sand Prime Square 20x60
Sand Prime 30x60
Sand Prime 20x60
Sand Prime 15x60

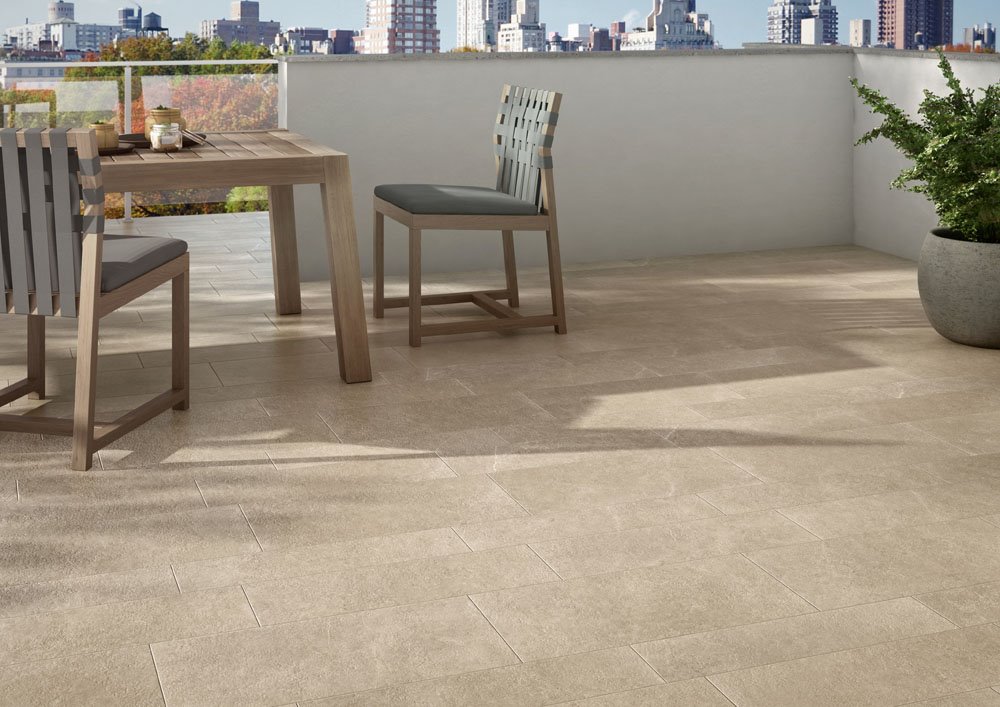

Sand Prime Strutturato 30x60 / 20x60 / 15x60
Silver Prime Muretto
Black Prime 45x90
Silver Prime Muretto 30x60 - Black Prime Soft 45x90 Rect.

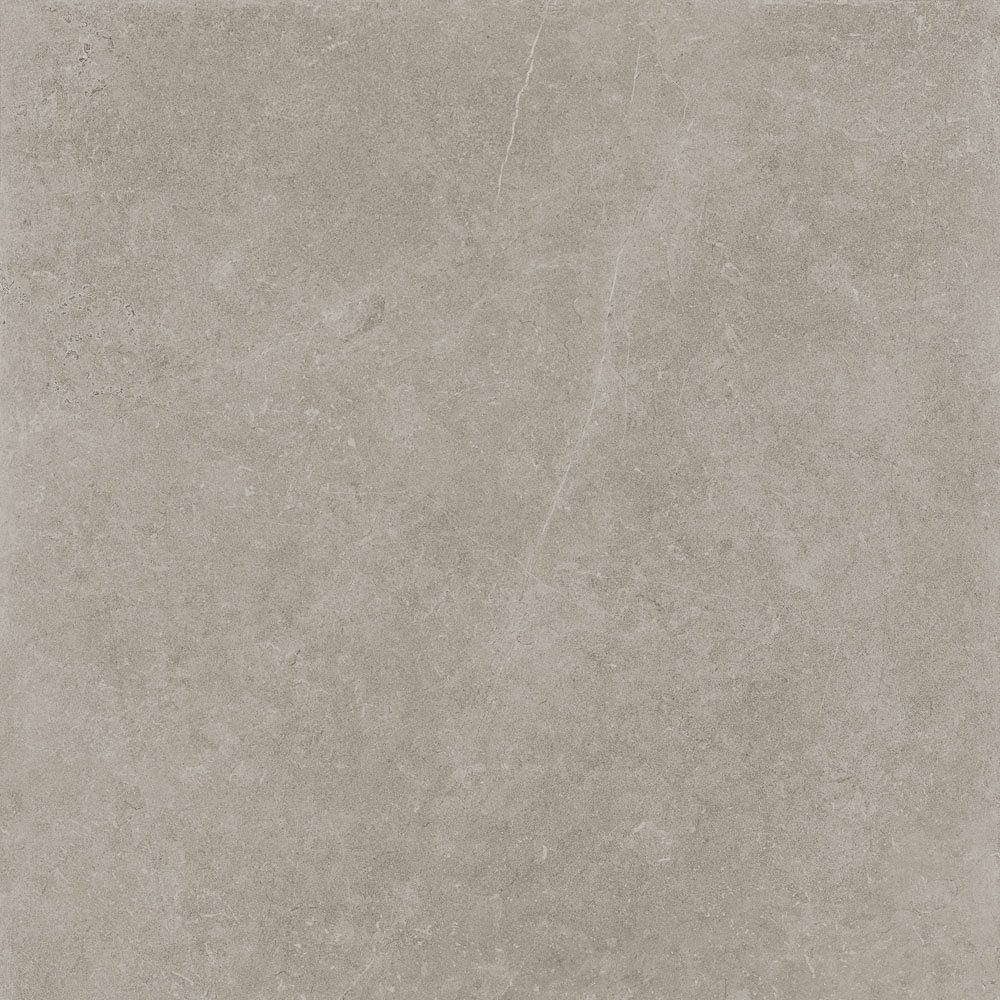

Silver Prime 60x60
Silver Prime Multiformato

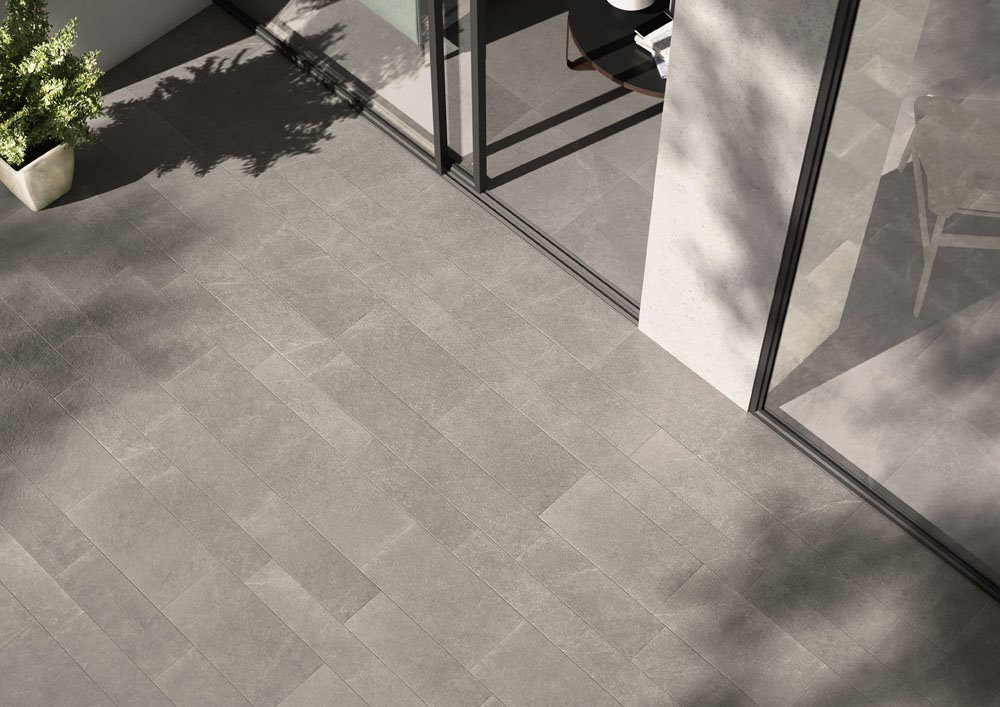

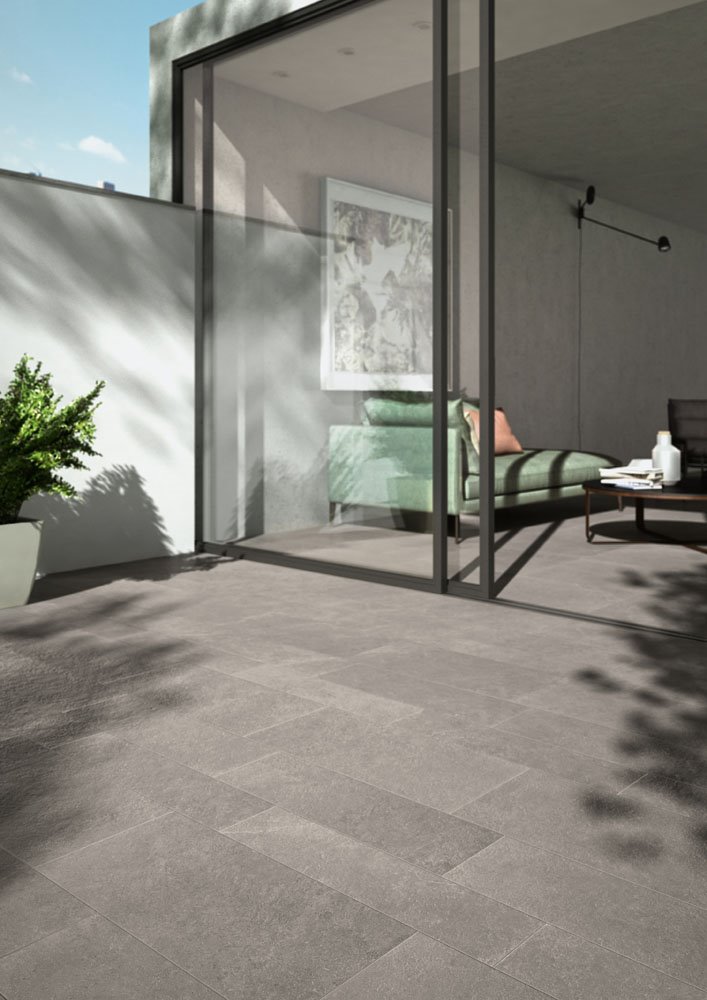

Silver Prime Soft 60x60 Rect. - Silver Prime Multiformato Rect. Strutturato
Silver Prime 60x60
White Prime Square 20x60
White Prime 20x60
Silver Prime Soft 60x60 - White Prime 20x60 - White Prime Square 20x60
Black Prime 90x90
Silver Prime Square 20x60

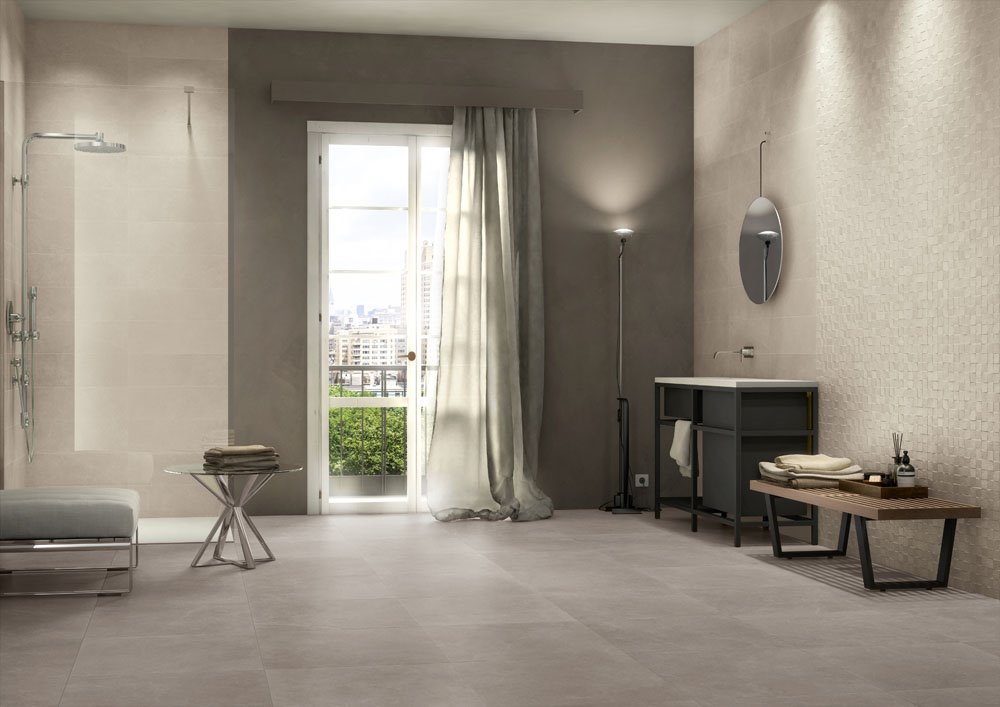

Silver Prime Square 20x60 Rect. - Black Prime Soft 90x90 Rect.
Silver Prime 60x60
Silver Prime 30x60
Silver Prime 20x60
Silver Prime 15x60

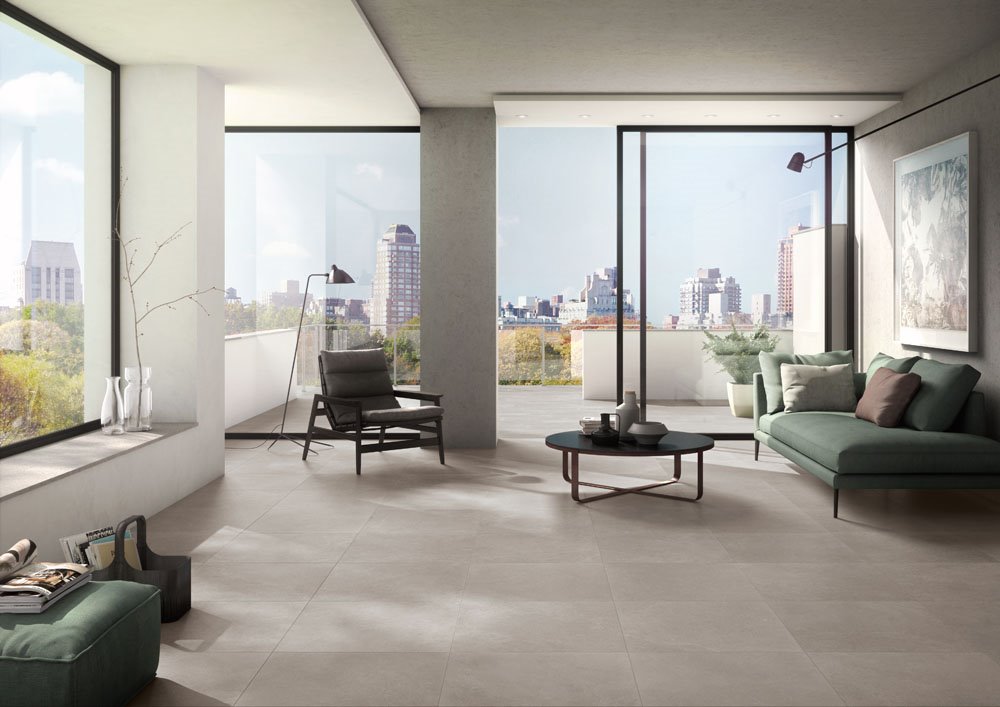

Silver Prime Strutturato 30x60 / 20x60 / 15x60 - Silver Prime Soft 60x60

Silver Prime 60x60
Silver Prime 30x60
Silver Prime 20x60
Silver Prime 15x60
Silver Prime Strutturato 30x60 / 20x60 / 15x60 - Silver Prime Soft 60x60
Greige Prime 60x60
Greige Prime Soft 60x60 - White Prime 20x60 - Greige Prime Stream 20x60

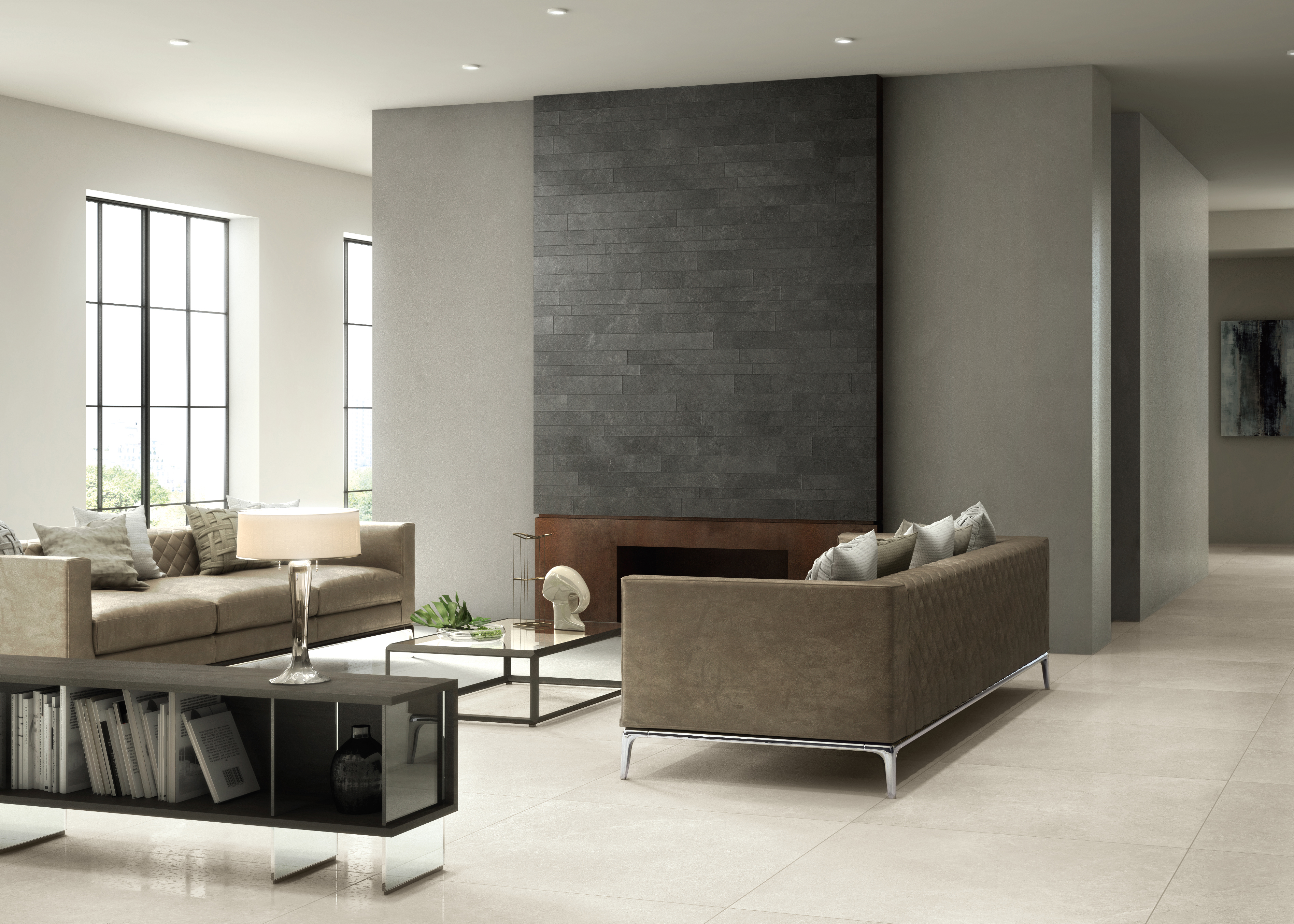

Black Prime Muretto
Black Prime Muretto 30x60

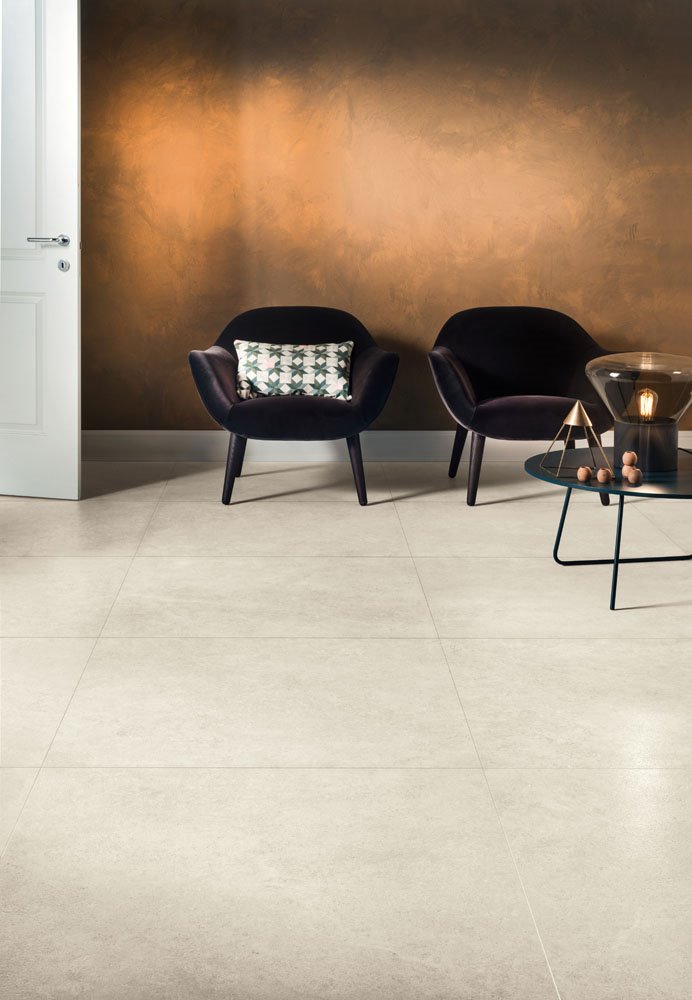

White Prime Soft 90x90 Rect.

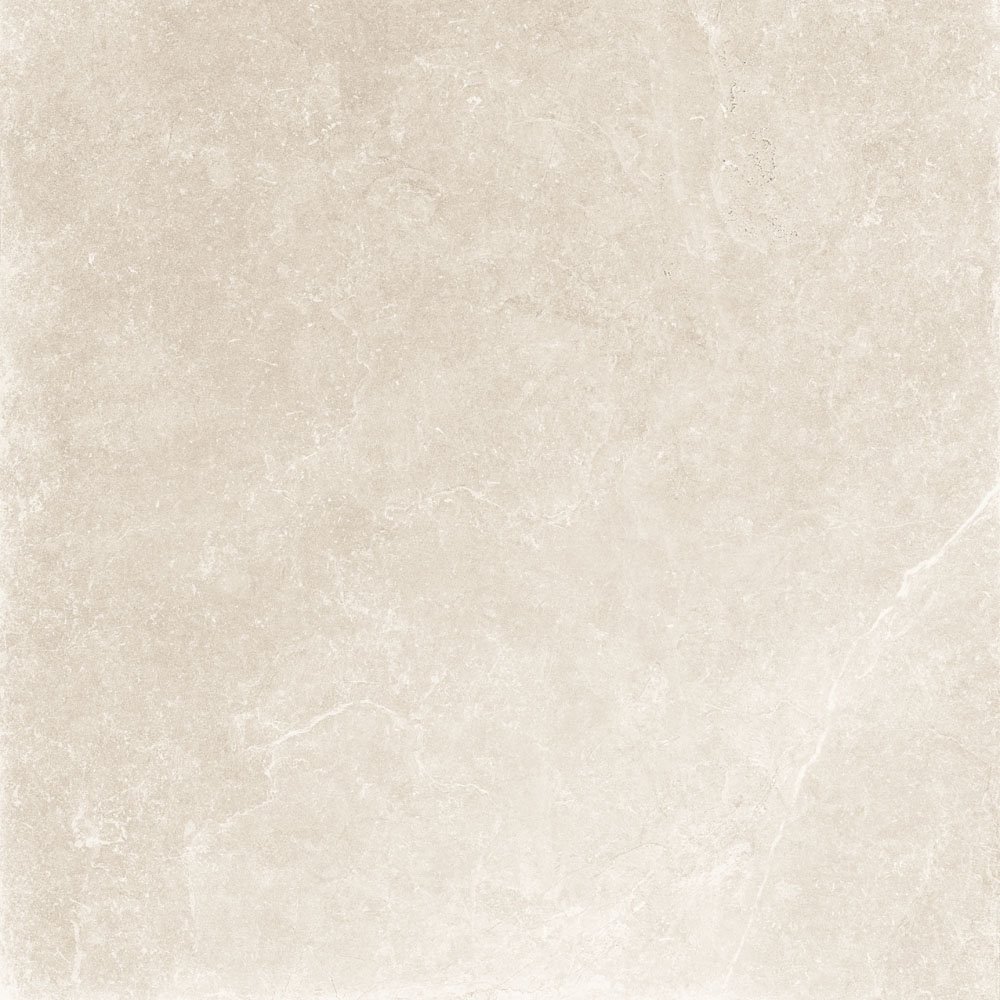

White Prime 90x90
Black Prime Mosaico

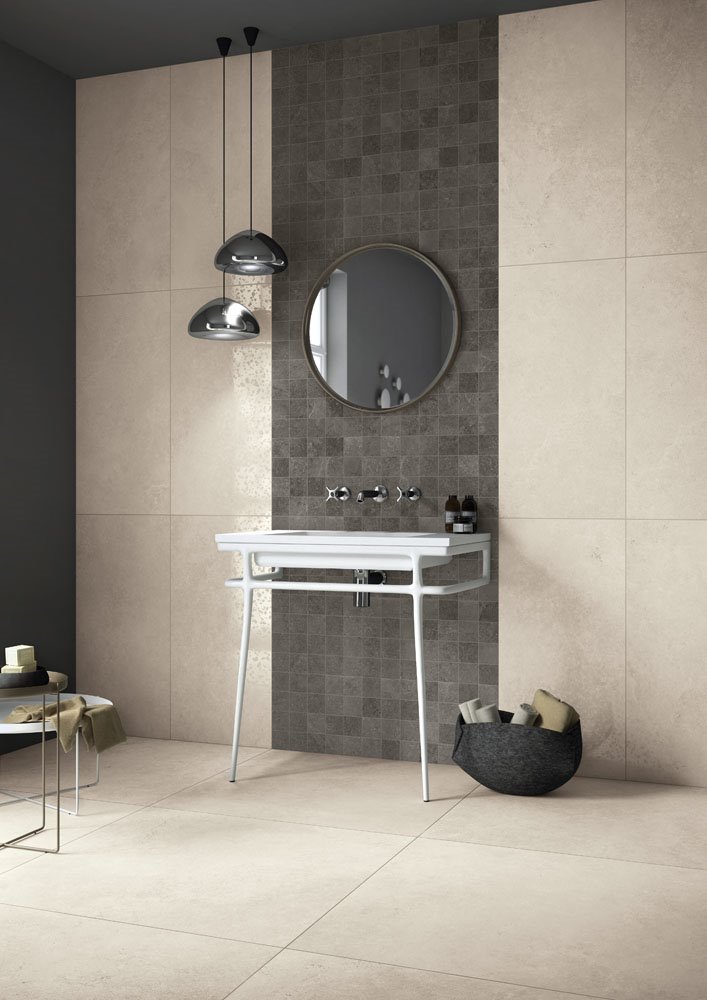

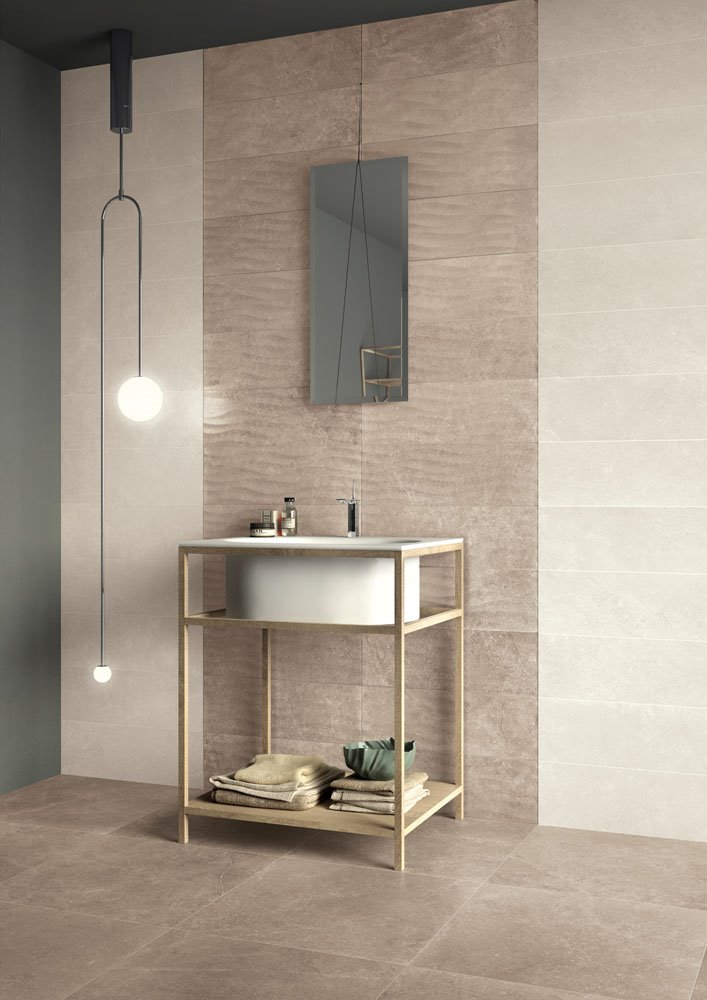

White Prime Soft 90x90 - Black Prime Mosaico 30x30

Technical specs

Floors and Walls porcelain tiles

Test method Required value Average values
Water absorption ASTM C373 ≤ 0.5% 0.05%
Breaking strengh ASTM C648 ≥ 250 lbf CONFORMS
Deep abrasion resistance ASTM C1243 ≤ 175 mm3 145 mm3
Linear thermal expansion ASTM C372 NO PROVISION

α ≤ 8 x 10-6 °C-1

α ≤ 4.4 x 10-6 °F-1
Stain resistance ASTM C1378 As indicated by manufacturer A RESISTANT
Chemical resistance
Lead and cadmium given off		 ASTM C650
ASTM C895		 As indicated by manufacturer
NO PROVISION		 A RESISTANT (Excluding hydrofluoridric acid and its derivates)
NOT APPLICABLE
Frost resistance ASTM C1026 As indicated by manufacturer RESISTANT
Slip resistance DIN 51130
BCR-TORTUS
ANSI A326.3
DIN 51097
PENDULUM AS/NZS 4586
PENDULUM BS 7976-2
-


 		 R9 (SOFT)
- (SOFT)
≥ 0.42
Shade variation ANSI A137.1 As indicated by manufacturer V2 SLIGHT VARIATION
Flame spread
Fire reaction		 ASTM E84
EN 9239-1 - EN 13823		 - CLASS A

CLASSE A1 FL (floor installation)

CLASSE A1 (wall installation)
Thermal conductivity EN 12524 - λ = 1,3 W/m °K / 0.7 BTU/ft h °F
Thermal shock resistance ISO 10545-9 No alterations Resistant

Walls glazed white body porous single-fired tiles

Test method Required value Average values
Water absorption ASTM C373 7% and ≤ 20% 7% < and ≤ 20%
Breaking strenght ASTM C648 ≥ 125 lbf ≥ 125 lbf
Linear thermal expansion ASTM C372 NO PROVISION

α ≤ 8 x 10-6 °C-1

α ≤ 4.4 x 10-6 °F-1
Stain resistance ASTM C1378 As indicated by manufacturer A RESISTANT
Chemical resistance
Lead and cadmium given off		 ASTM C650
ASTM C895		 As indicated by manufacturer
NO PROVISION		 A RESISTANT (Excluding hydrofluoridric acid and its derivates)
RESISTANT
Frost resistance ASTM C1026 As indicated by manufacturer NOT RESISTANT
Shade variation ANSI A137.1 As indicated by manufacturer V1 UNIFORM APPEARANCE
Flame spread
Fire reaction		 ASTM E84
EN 9239-1 - EN 13823		 - CLASS A

CLASSE A1 FL (floor installation)

CLASSE A1 (wall installation)
Thermal conductivity EN 12524 - λ = 1,3 W/m °K / 0.7 BTU/ft h °F
Thermal shock resistance ISO 10545-9 No alterations Resistant
Crazing resistance ISO 10545-11 No alterations Resistant

Outdoor floors 20mm porcelain tiles

Test method Required value Average values
Water absorption ASTM C373 ≤ 0.5% 0.05%
Breaking strengh ASTM C648 ≥ 250 lbf 2800 lbf
Deep abrasion resistance ASTM C1243 ≤ 175 mm3 145 mm3
Linear thermal expansion ASTM C372 NO PROVISION

α ≤ 8 x 10-6 °C-1

α ≤ 4.4 x 10-6 °F-1
Stain resistance ASTM C1378 As indicated by manufacturer A RESISTANT
Chemical resistance ASTM C650 As indicated by manufacturer A RESISTANT (Excluding hydrofluoridric acid and its derivates)
Frost resistance ASTM C1026 As indicated by manufacturer RESISTANT
Slip resistance DIN 51130
BCR-TORTUS
ANSI A326.3
DIN 51097
PENDULUM AS/NZS 4586
PENDULUM BS 7976-2
-


 		 R11 (STRUCT/20mm)
> 0,50
≥ 0.62
A+B+C (STRUCT/20mm)
P4
36+
Flame spread
Fire reaction		 ASTM E84
EN 9239-1		 - CLASS A
CLASSE A1 FL (Floor installation)
Thermal conductivity EN 12524 - λ = 1,3 W/m °K / 0.7 BTU/ft h °F
Thermal shock resistance ISO 10545-9 No alterations Resistant

Downloads

Porcelain tile Declaration of Performance pdf
Laminated Porcelain 5Plus Declaration of Performance pdf
Prime stone Tender specs pdf
Prime Stone Gres BIM zip
